Product

DD-12190
클릭하여 확대

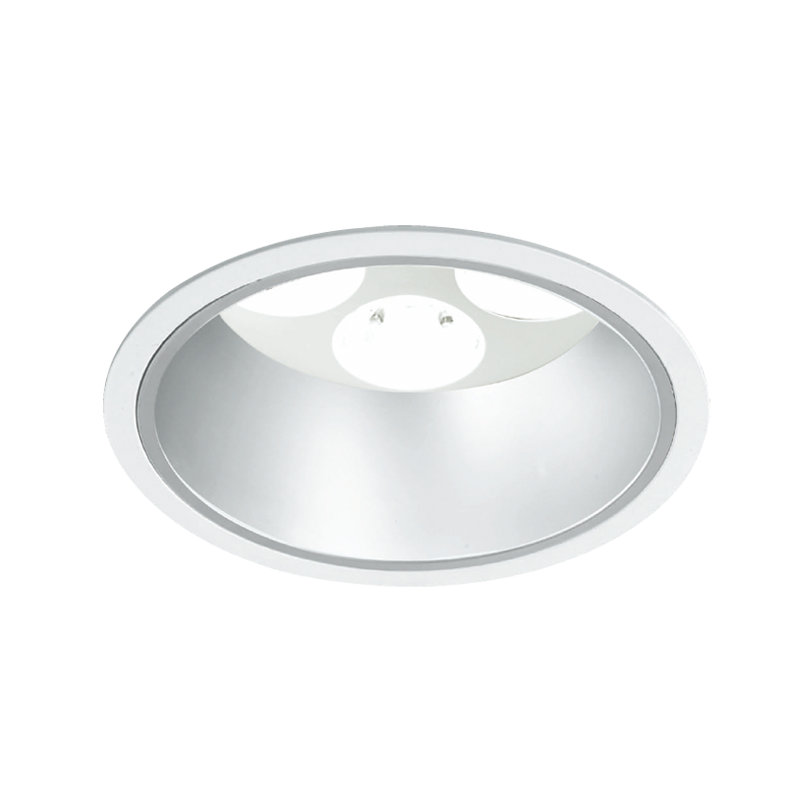

DD-12190

DD-12190

Recessed Fixed

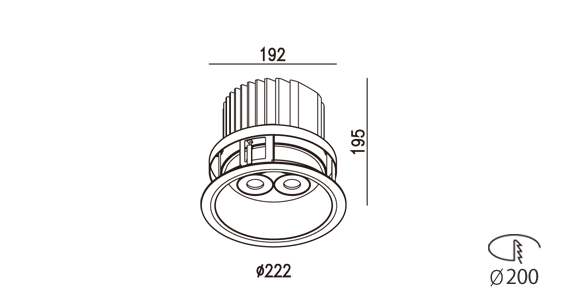

DD-12190 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : LENS / Outer : AL. Anodized
  • Dimension
    ∅ 222 x H 195 mm
  • Hole Cut
    ∅ 200 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12190
  • 80 W
  • 70 W
  • 36 Vdc
  • 2 050 mA
  • 27.1 ˚
  • 35.3 ˚
  • 47.6 ˚
  • 59.5 ˚
  • 8 394 lm
  • 8 298 lm
  • 8 168 lm
  • 8 178 lm
 - -
