DD-12100.03
클릭하여 확대

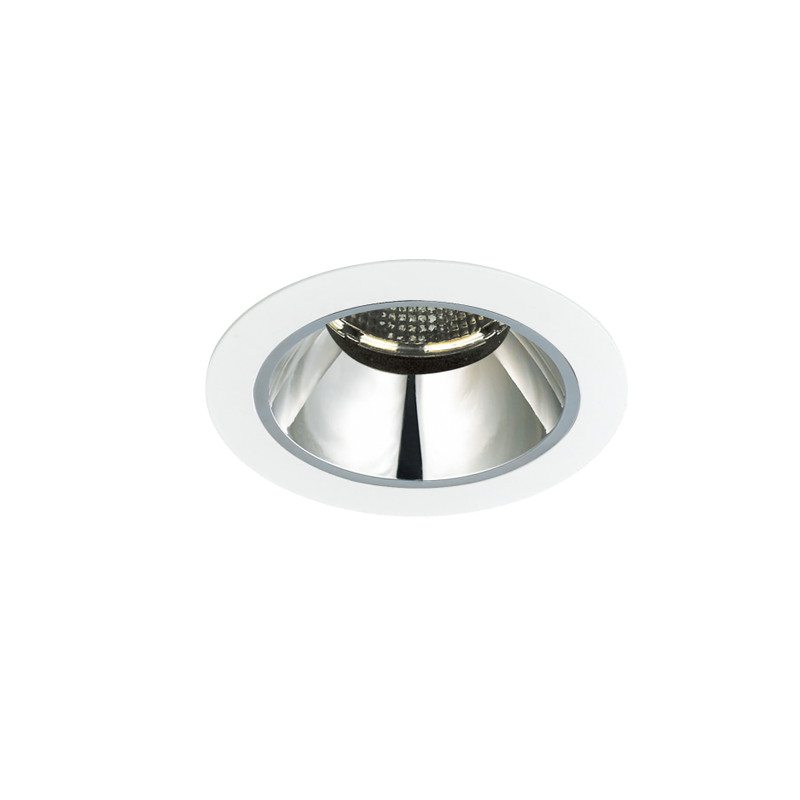

DD-12100.03

DD-12100.03

Recessed adjustable

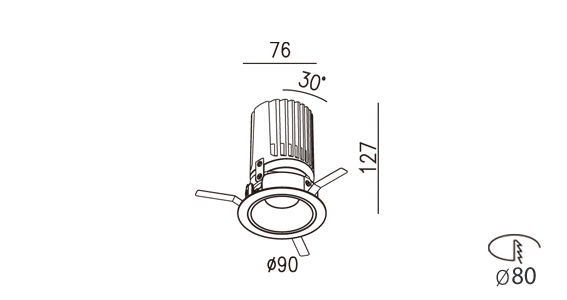

DD-12100.03 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : PC / OUTER : ABS (Chrome)
  • Dimension
    ∅ 90 x H 127 mm
  • Hole Cut
    ∅ 80 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12100.03
  • 13 W
  • 10 W
  • 32 Vdc
  • 350 mA
  • 16.9 ˚
  • 19.1 ˚
  • 26.9 ˚
  • 45.7 ˚
  • 51.5 ˚
  • 981 lm
  • 918 lm
  • 869 lm
  • 1 032 lm
  • 1 070 lm
 - -
  • DD-12100.03
  • 19 W
  • 10 W
  • 32 Vdc
  • 500 mA
  • 16.6 ˚
  • 19.2 ˚
  • 26.9 ˚
  • 45.8 ˚
  • 51.5 ˚
  • 1 317 lm
  • 1 250 lm
  • 1 186 lm
  • 1 423 lm
  • 1 450 lm
 - -
