DD-20601.02
클릭하여 확대

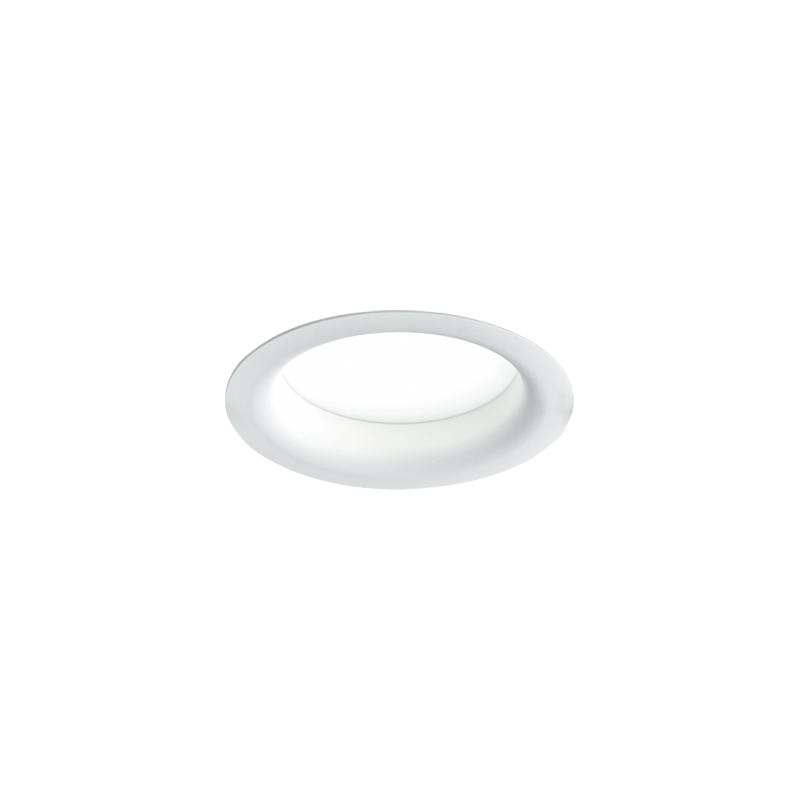

DD-20601.02

DD-20601.02

Recessed Fixed

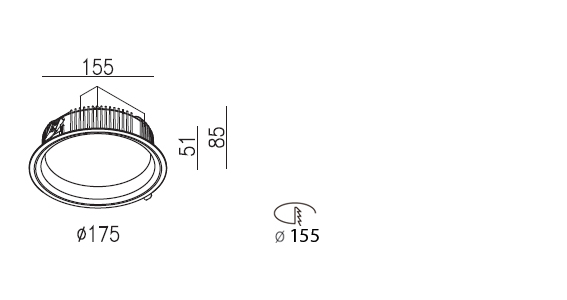

DD-20601.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    5 700K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC Cover
  • Dimension
    ∅ 175 x H 51 mm
  • Hole Cut
    ∅ 155 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-20601.02
  • 24 W
  • 20 W
  • 30 Vdc
  • 700 mA
  • 105.3 ˚
  • 2 122 lm
 - -
  • DD-20602.02
  • 27 W
  • 24 W
  • 30 Vdc
  • 800 mA
  • 106.4 ˚
  • 2 386 lm
 - -
