Product

DDC-65342.02
클릭하여 확대

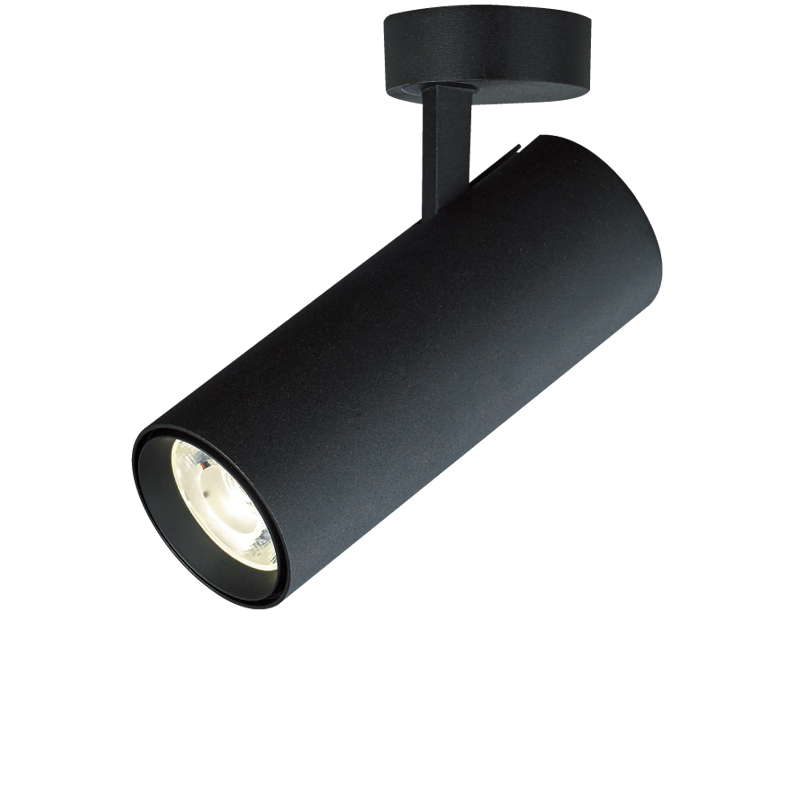

DDC-65342.02

DDC-65342.02

Surfaced Mounted adjustable

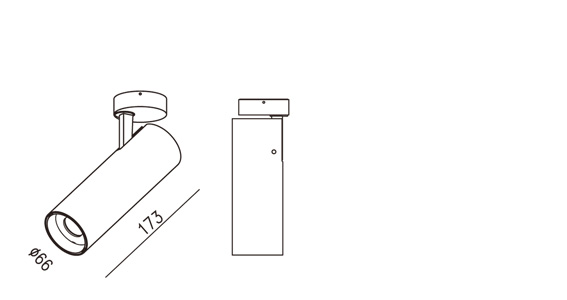

DDC-65342.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    ∅ 66 x H 173 mm
  • Hole Cut

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65342.02
  • 24 W
  • 21 W
  • 36 Vdc
  • 600 mA
  • 15.4 ˚_
  • 28.6 ˚
  • 37.1 ˚
  • 49.9 ˚
  • 1 787 lm
  • 2 374 lm
  • 2 452 lm
  • 2 277 lm
 - -
