DDC-65141
클릭하여 확대

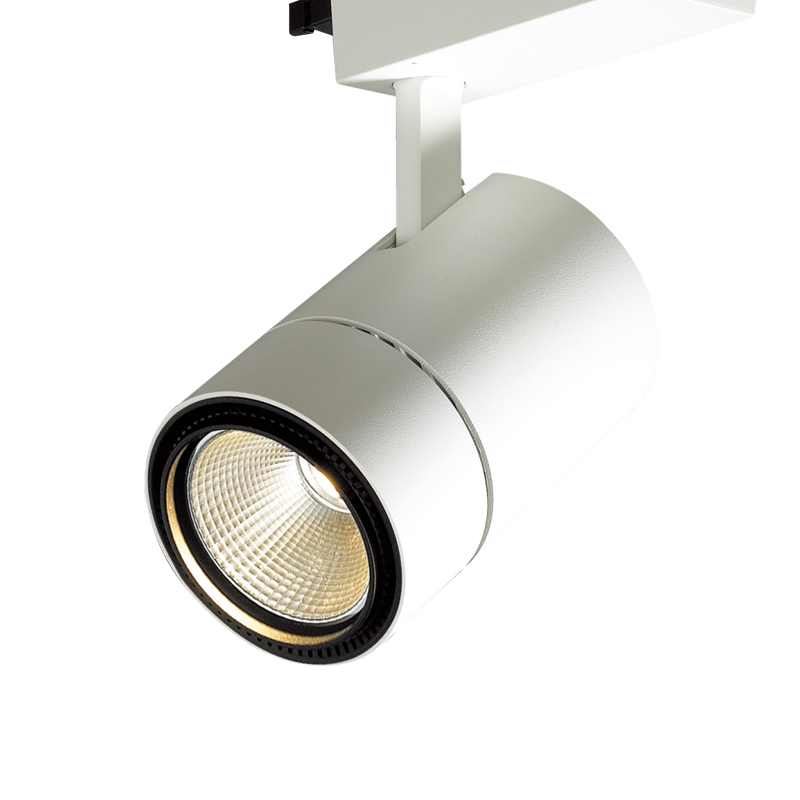

DDC-65141

DDC-65141

Track adjustable

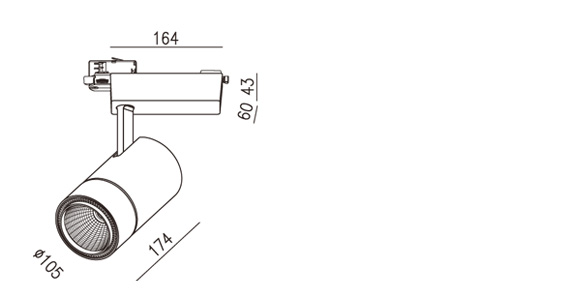

DDC-65141 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver
  • Dimension
    ∅ 105 x H 174 mm
  • Hole Cut

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65141
  • 28 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 19.6 ˚
  • 38.3 ˚
  • 2 781 lm
  • 2 774 lm
 - -
  • DDC-65142
  • 43 W
  • 37 W
  • 36 Vdc
  • 1050 mA
  • 19.6 ˚
  • 38.3 ˚
  • 3 875 lm
  • 3 936 lm
 - -
