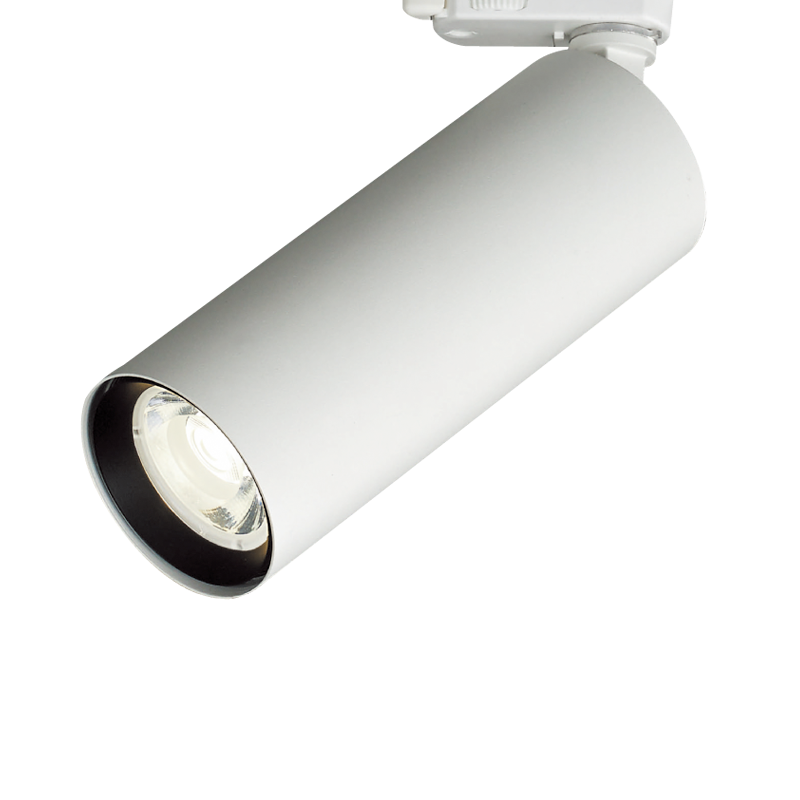

DDC-65070.05
클릭하여 확대
DDC-65070.05
클릭하여 확대
DDC-65070.05
DDC-65070.05

DDC-65070.05

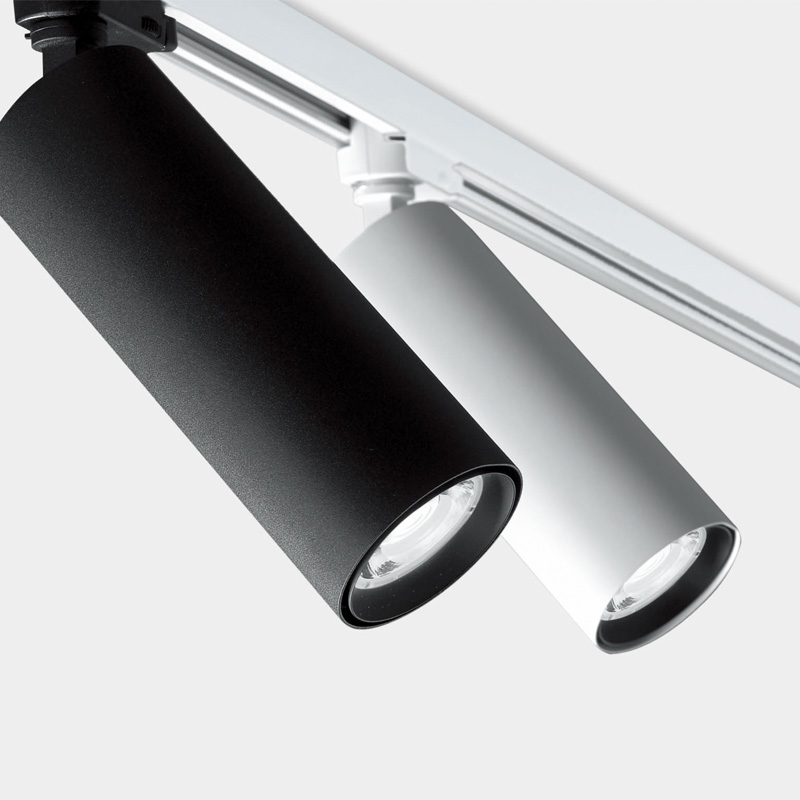

Track adjustable

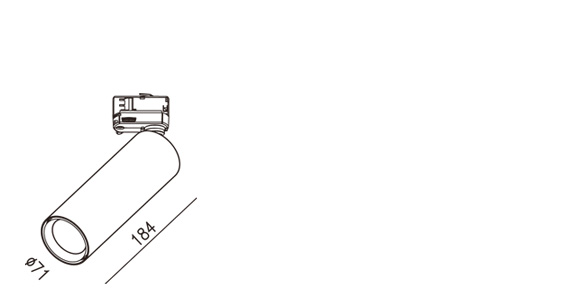

DDC-65070.05 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    ∅ 71 x H 184 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65070.05
  • 24 W
  • 21 W
  • 36 Vdc
  • 600 mA
  • 16.3 ˚_
  • 35.0 ˚
  • 45.6 ˚
  • 57.1 ˚
  • 1 805 lm
  • 2 294 lm
  • 2 300 lm
  • 2 217 lm
 - -
