Product

DP-51280.02
클릭하여 확대

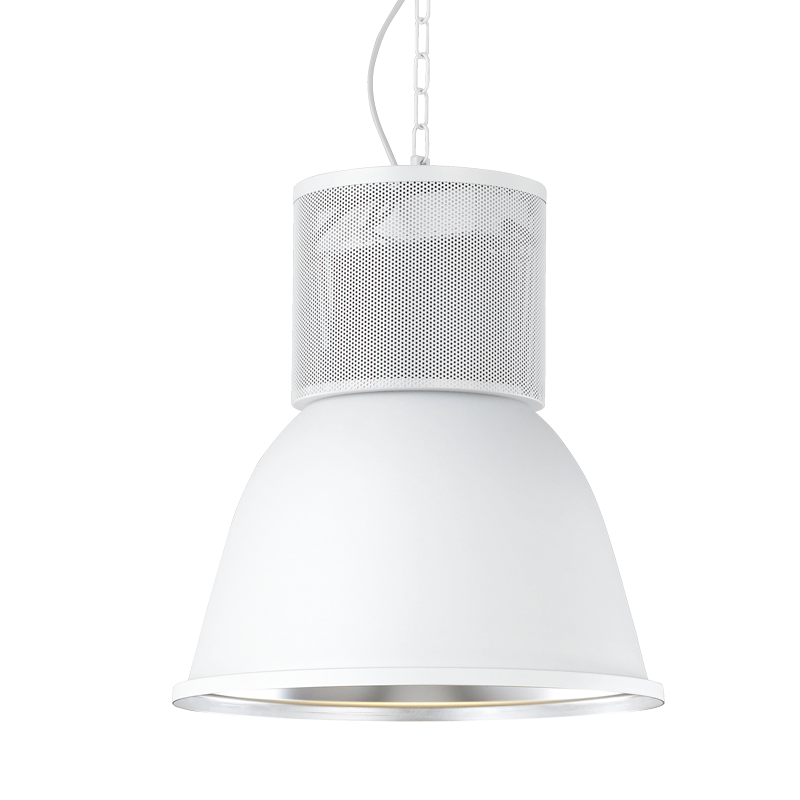

DP-51280.02

DP-51280.02

Pendant Fixed

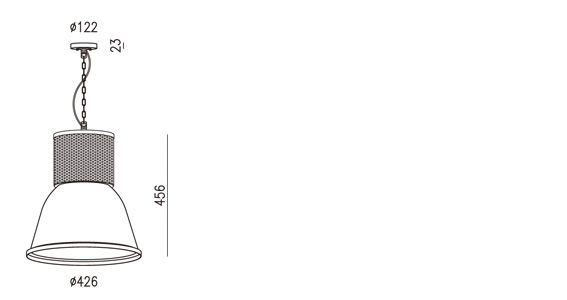

DP-51280.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    5 700K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    ∅ 426 x H 456 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DP-51280.02
  • 95 W
  • 85 W
  • 34 Vdc
  • 2 470 mA
  • 29.5 ˚
  • 39.3 ˚
  • 44.5 ˚
  • 52.1 ˚
  • 9 658 lm
  • 9 525 lm
  • 9 471 lm
  • 9 646 lm
 - -
