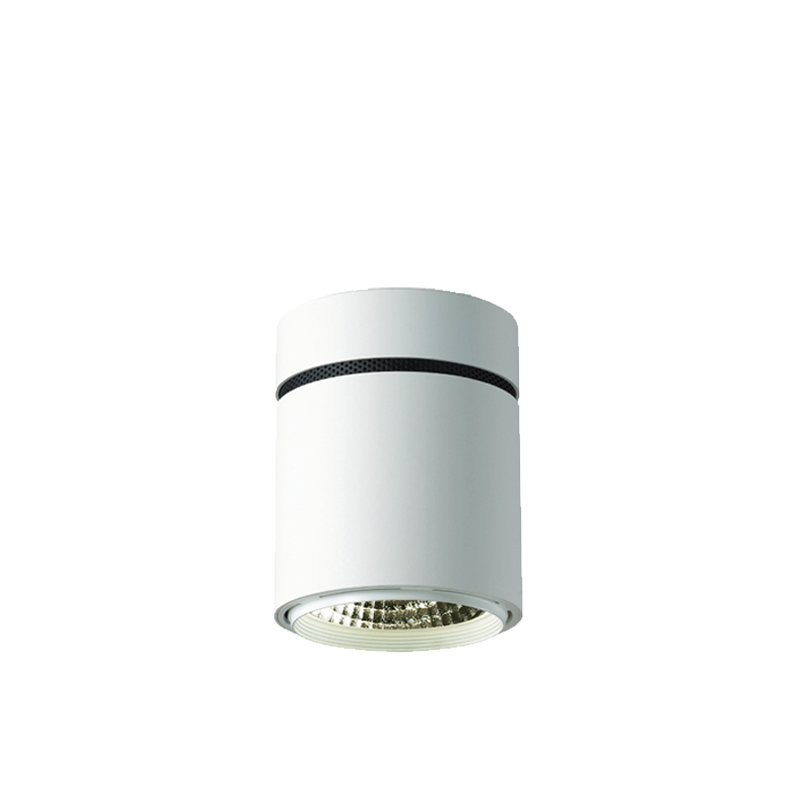

DP-51021.02-02

Surfaced Mounted Fixed

PRODUCT SPECIFICATION

Type of LED
COB or SMD
Input Voltage
220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
CRI
80, 90
Color Temperature
COB (4 000 K / 3 000 K), SMD (5 000 K / 4 000 K / 3 000 K)
SDCM
3
Life time
50 000 hours at 25 ℃

PRODUCT DATA DOWNLOAD
ORDER NUMBER	INPUT POWER	OUTPUT POWER	OUTPUT VOLTAGE	OUTPUT CURRENT	BEAM ANGLE	LUMINOUS FLUX	SPEC	CATALOGUE	INSTALLATION
DP-51021.02-02 (COB)	28 W	24 W	36 Vdc	700 mA	81.3 ˚	2 956 lm		-	-
DP-51022.02-02 (COB)	37 W	32 W	36 Vdc	900 mA	81.3 ˚	3 698 lm		-	-
DP-51023.02-02 (COB)	42 W	38 W	36 Vdc	1 050 mA	81.9 ˚	3 915 lm	-	-	-
DP-51026.02-02 (SMD)	27 W	24 W	34 Vdc	700 mA	51.5 ˚	2 720 lm	-	-	-
DP-51027.02-02 (SMD)	41 W	36 W	36 Vdc	1 050 mA	51.3 ˚	3 714 lm	-	-	-
