Product

DD-37110.10
클릭하여 확대

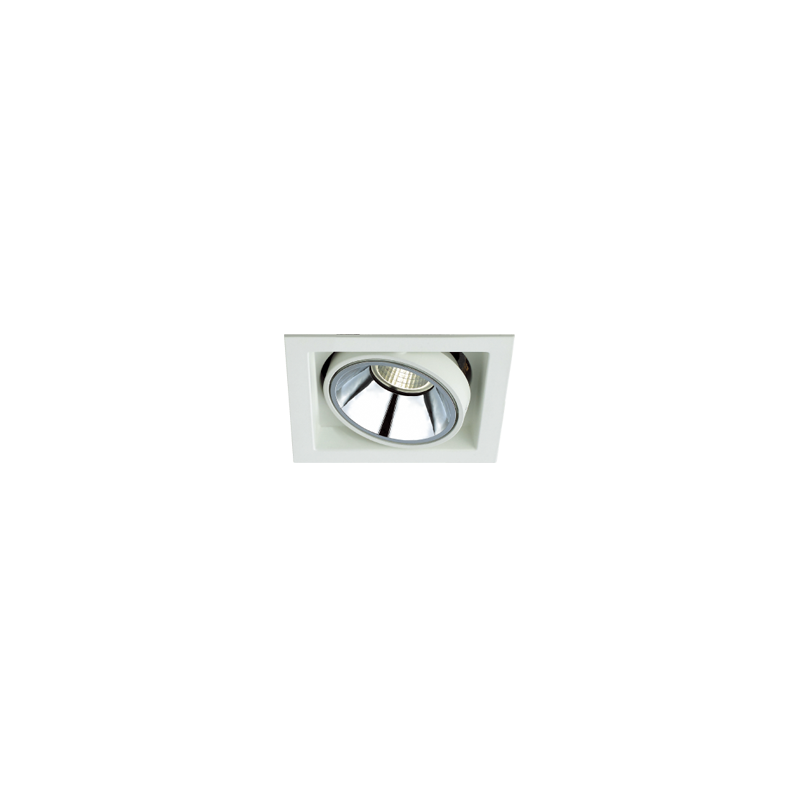

DD-37110.10

DD-37110.10

Recessed adjustable

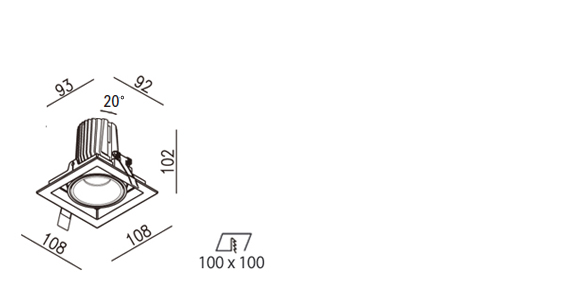

DD-37110.10 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : PC / Outer : ABS (Chrome
  • Dimension
    108 x 108 x H102 mm
  • Hole Cut
    100 x 100 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-37110.10
  • 14 W
  • 12 W
  • 32 Vdc
  • 350 mA
  • 20.6 ˚
  • 26.2 ˚
  • 37.4 ˚
  • 1 367 lm
  • 1 341 lm
  • 1 406 lm
 - -
