Product

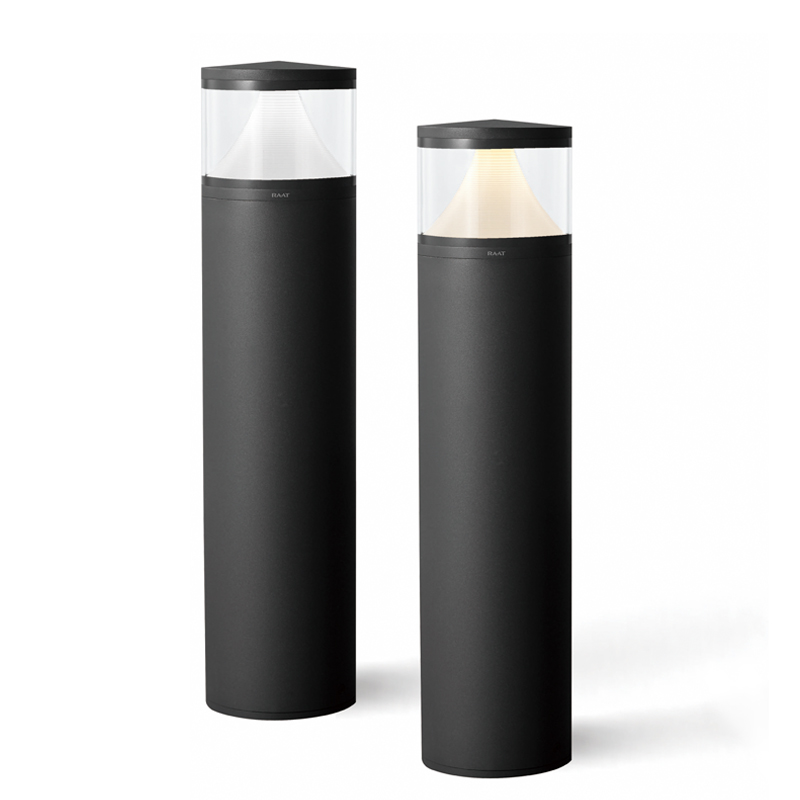

DBO-75172.01
클릭하여 확대
DBO-75172.01

DBO-75172.01

Outdoor Fixed

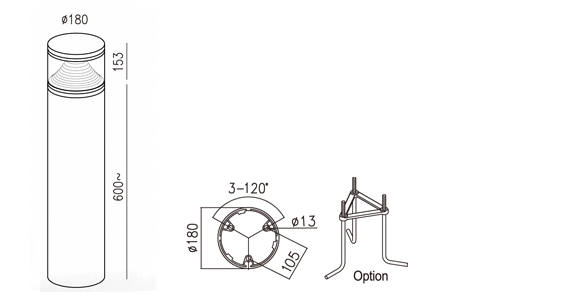

DBO-75172.01 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80
  • Color Temperature
    6 500 K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    Light Gray, Black, Dark Gray
  • Accessory
    Diffuser _PC(sanding)
  • Dimension
    ∅ 180 x H 753 mm
  • Hole Cut

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DBO-75172-01
  • 15 W
  • 36 Vdc
  • 350 mA
  • 49.5 ˚ / 24.7 ˚
  • 240 lm
 - -
