Product

DD-12030.02
클릭하여 확대

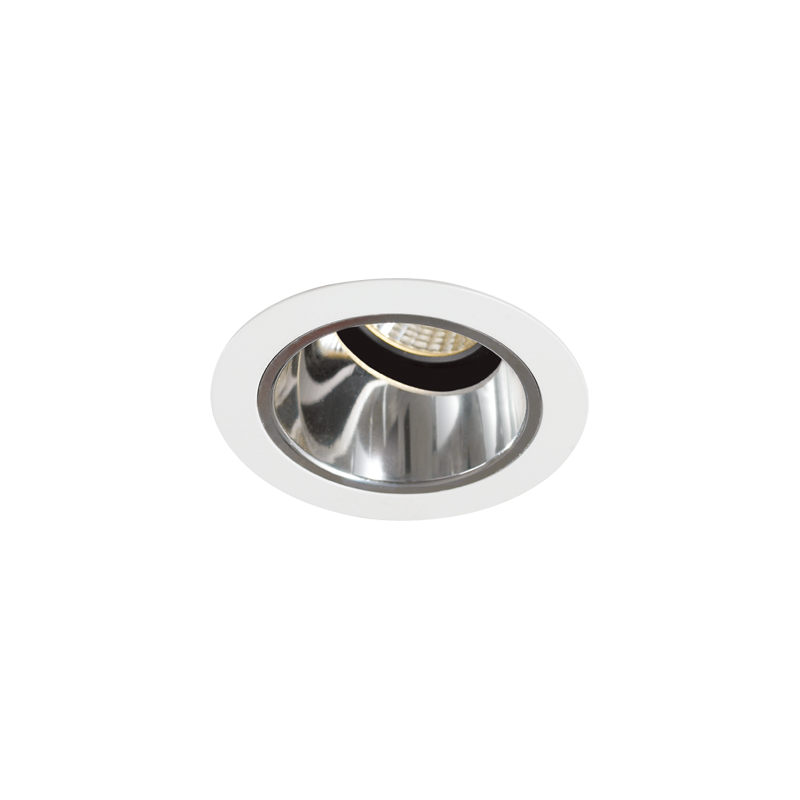

DD-12030.02

DD-12030.02

Recessed adjustable

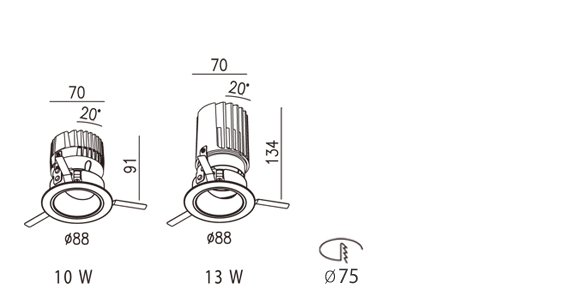

DD-12030.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : PC (Vacuum Coating) / OUTER : AL. Anodized Specular Silver
  • Dimension
    ∅ 88 x H (10W) 91 mm / (13W) 134 mm
  • Hole Cut
    ∅ 75 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12030.02
  • 10 W
  • 8 W
  • 32 Vdc
  • 250 mA
  • 19.7 ˚
  • 23.5 ˚
  • 31.9 ˚
  • 828 lm
  • 869 lm
  • 964 lm
 - - -
  • DD-12030.02
  • 13 W
  • 11 W
  • 32 Vdc
  • 350 mA
  • 19.7 ˚
  • 23.5 ˚
  • 32.0 ˚
  • 1 080 lm
  • 1 172 lm
  • 1 306 lm
 - - -
