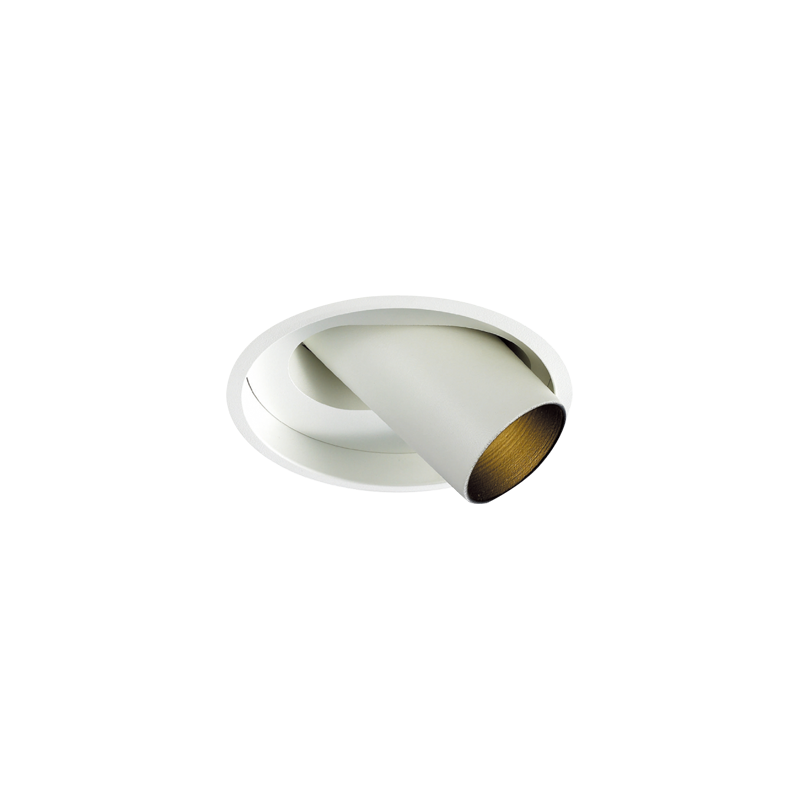

DD-12080.02
클릭하여 확대
DD-12080.02

DD-12080.02

Recessed adjustable

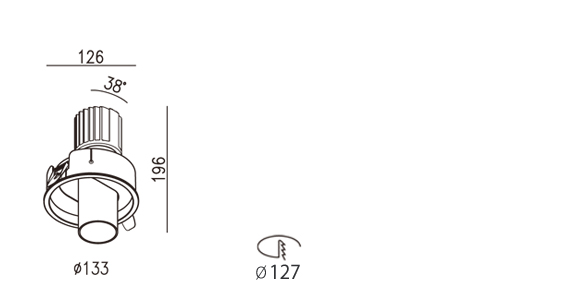

DD-12080.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC (Vacuum Coating)
  • Dimension
    Ø 133 x H 196 mm
  • Hole Cut
    Ø 127 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12080.02
  • 10 W
  • 8 W
  • 32 Vdc
  • 250 mA
  • 13.0 ˚
  • 18.5 ˚
  • 25.0 ˚
  • 561 lm
  • 469 lm
  • 559 lm
 - -
  •
  • 13 W
  • 11 W
  • 32 Vdc
  • 350 mA
  • 12.9 ˚
  • 18.5 ˚
  • 25.1 ˚
  • 752 lm
  • 637 lm
  • 762 lm
 - -
