DD-26540.01
클릭하여 확대

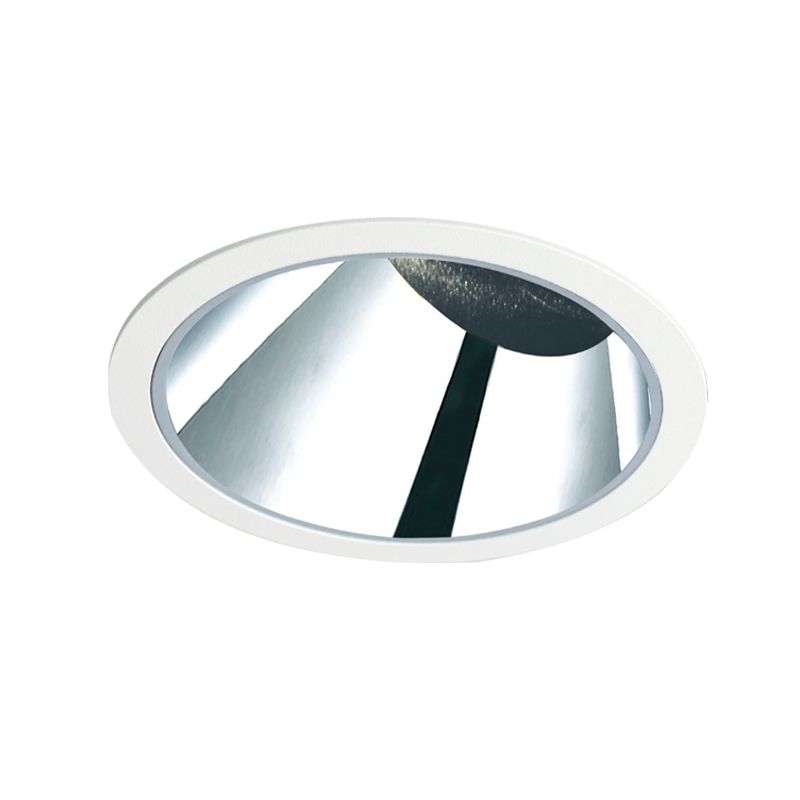

DD-26540.01

DD-26540.01

Recessed adjustable

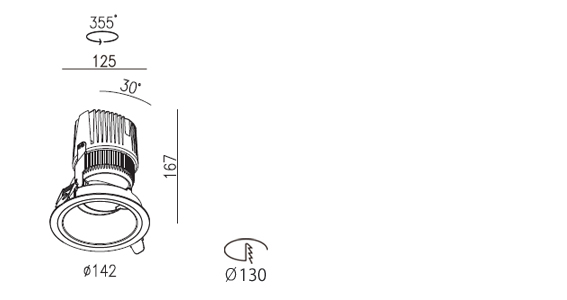

DD-26540.01 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : AL. Anodized / Outer : ABS (Chrome)
  • Dimension
    ∅ 142 x H 167 mm
  • Hole Cut
    ∅ 130 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26540.01
  • 28 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 17.1 ˚/ 17.0 ˚
  • 23.0 ˚/ 24.9 ˚
  • 33.0 ˚/ 35.3 ˚
  • 2 585 lm
  • 2 561 lm
  • 2 376 lm
 - -
  • DD-26541.01
  • 36 W
  • 32 W
  • 36 Vdc
  • 900 mA
  • 17.0 ˚/ 17.3 ˚
  • 23.0 ˚/ 25.1 ˚
  • 33.0 ˚/ 35.5 ˚
  • 3 309 lm
  • 3 188 lm
  • 2 938 lm
 - -
