Product

DD-12180.02
클릭하여 확대
DD-12180.02

DD-12180.02

Recessed Fixed

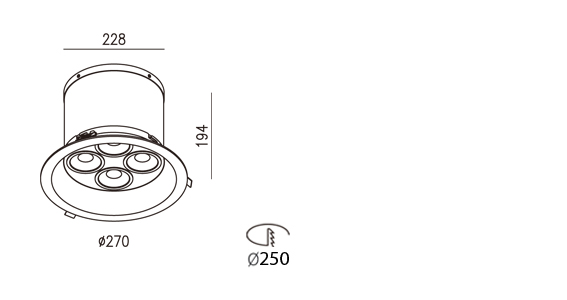

DD-12180.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : LENS / Outer : AL. Anodized
  • Dimension
    ∅ 262 x H 251 mm
  • Hole Cut
    ∅ 240 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12180.02
  • 165 W
  • 143 W
  • 36 Vdc x4
  • 1 050 mA x 4
  • 23.4 ˚
  • 29.7 ˚
  • 36.8 ˚
  • 49.9 ˚
  • 15 135 lm
  • 16 030 lm
  • 15 433 lm
  • 15 368 lm
 - -
