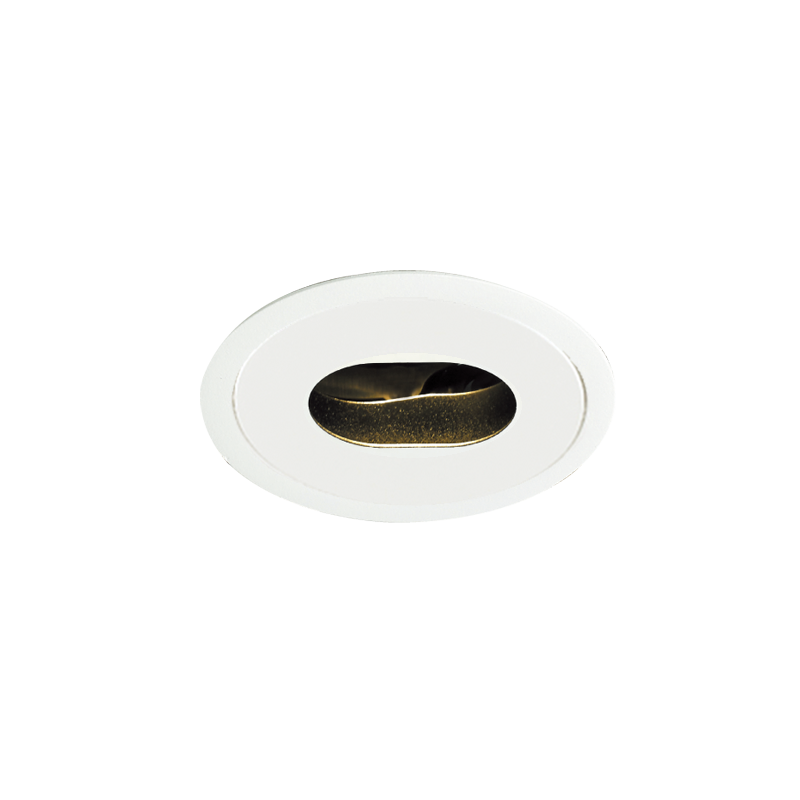

DD-12100.12
클릭하여 확대
DD-12100.12

DD-12100.12

Recessed adjustable

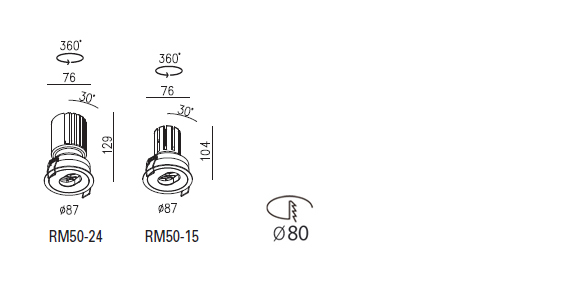

DD-12100.12 도면

PRODUCT SPECIFICATION

  • Type of LED
    RM50 (LED Lamp)
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K / 2700K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    Ø 87 mm x H (RM50-24) 129 mm / (RM50-15)104 mm
  • Hole Cut
    Ø 80 mm

PRODUCT FEATURES


PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12100.12
  • (RM50-24)
  • 24 W
  • 35 Vdc
  • 550 mA
  • 20.2 ˚
  • 25.0 ˚
  • 31.6 ˚
  • 42.0 ˚
  • 1 400 lm
  • 1 728 lm
  • 1 865 lm
  • 1 761 lm
 - - -
  • DD-12106.12
  • (RM50-15)
  • 15 W
  • 36 Vdc
  • 32 Vdc
  • 32 Vdc
  • 32 Vdc
  • 350 mA
  • 400 mA
  • 400 mA
  • 400 mA
  • 14.3 ˚
  • 25.3 ˚
  • 35.5 ˚
  • 38.9 ˚
  • 774 lm
  • 1 084 lm
  • 1 215 lm
  • 1 077 lm
 - - -
