DD-12100.13-02
클릭하여 확대

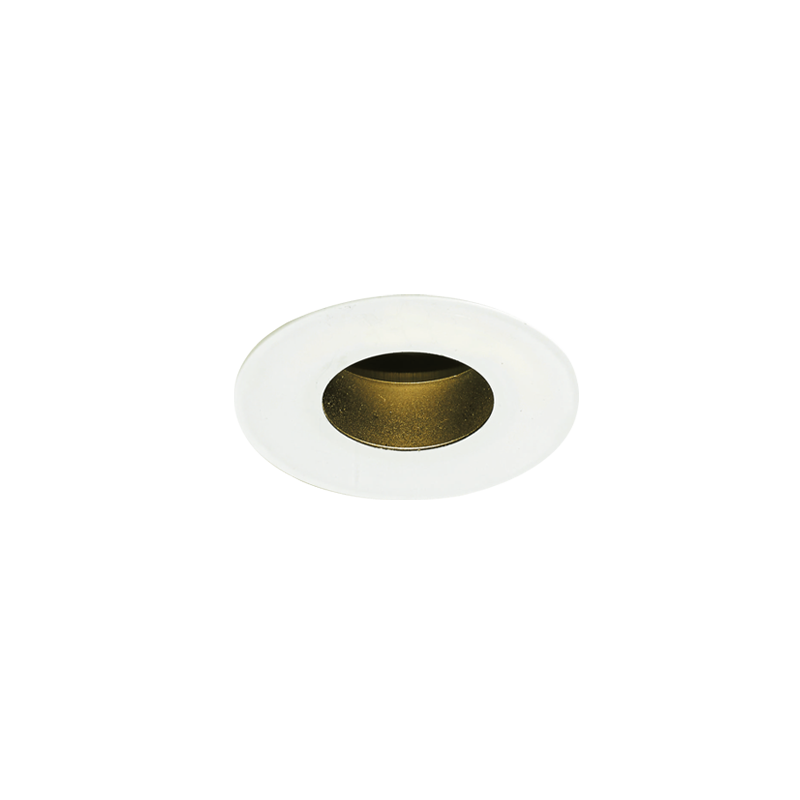

DD-12100.13-02

DD-12100.13-02

Recessed adjustable

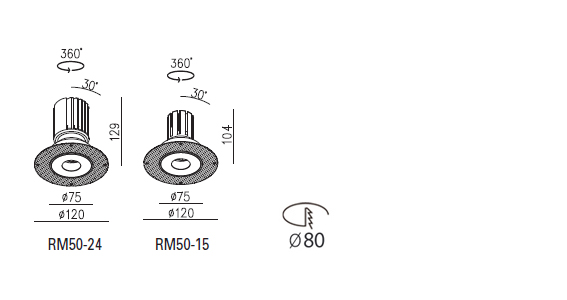

DD-12100.13-02 도면

PRODUCT SPECIFICATION

  • Type of LED
    RM50 (LED Lamp)
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K / 2700K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    Ø 75 mm x H (RM50-24) 129 mm / (RM50-15)104 mm
  • Hole Cut
    ∅ 80 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12100.13-02
  • (RM50-24)
  • 24 W
  • 35 Vdc
  • 550 mA
  • 20.8 ˚
  • 25.6 ˚
  • 30.6 ˚
  • 41.1 ˚
  • 1 260 lm
  • 1 541 lm
  • 1 782 lm
  • 1 662 lm
 - - -
  • DD-12106.13-02
  • (RM50-15)
  • 15 W
  • 36 Vdc
  • 32 Vdc
  • 32 Vdc
  • 32 Vdc
  • 350 mA
  • 400 mA
  • 400 mA
  • 400 mA
  • 14.7˚
  • 25.7 ˚
  • 34.8 ˚
  • 37.8 ˚
  • 712 lm
  • 980 lm
  • 998 lm
  • 1 034 lm
 - - -
