Product

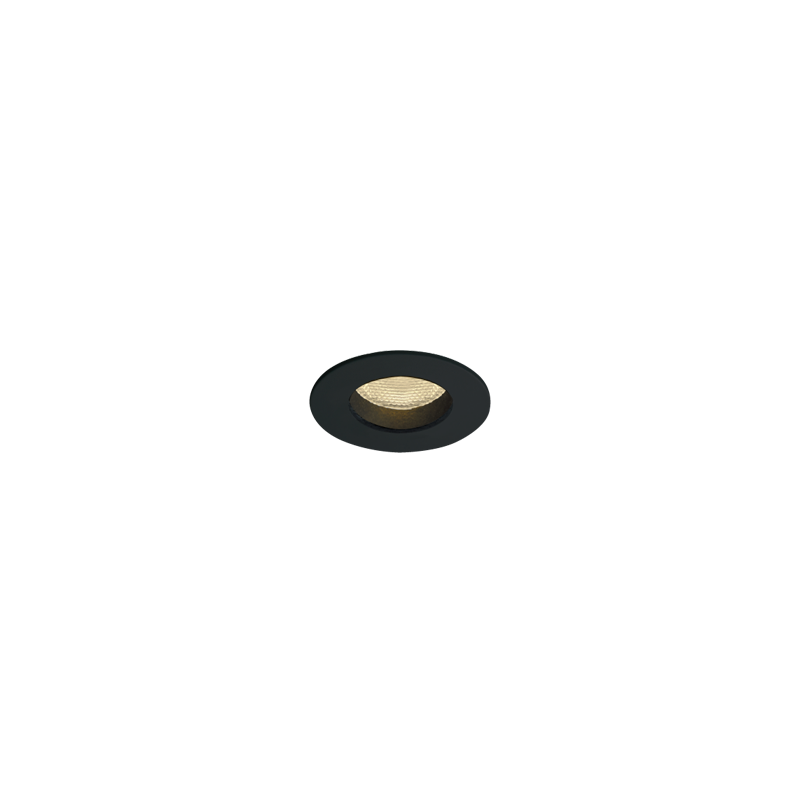

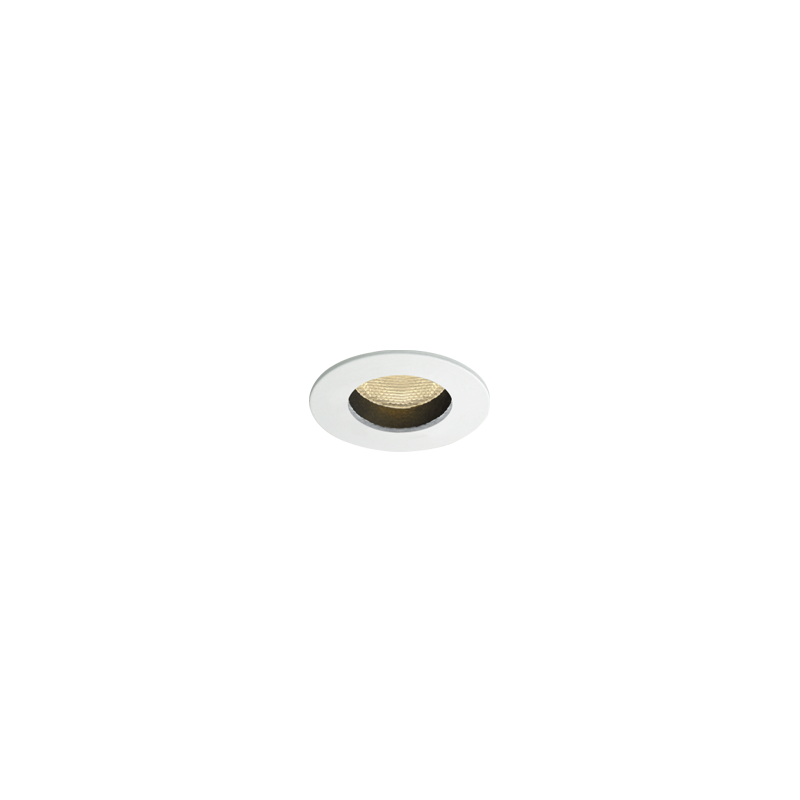

DD-11000.02
클릭하여 확대
DD-11000.02
클릭하여 확대
DD-11000.02
DD-11000.02

DD-11000.02

Recessed Fixed

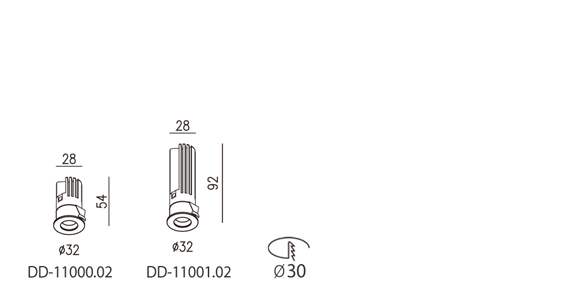

DD-11000.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    POWER LED
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    ∅ 32 x H 54 mm
  • Hole Cut
    ∅ 30 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-11000.02
  • 3 W
  • 2 W
  • 3 Vdc
  • 700 mA
  • 11.8 ˚
  • 15.5 ˚
  • 22.8 ˚
  • 29.0 ˚
  • 42.3 ˚
  • 192 lm
  • 237 lm
  • 232 lm
  • 195 lm
  • 206 lm
 - -
  • DD-11001.02
  • 7 W
  • 6 W
  • 12 Vdc
  • 500 mA
  • 15.7 ˚
  • 24.0 ˚
  • 29.8 ˚
  • 37.6 ˚
  • 41.1 ˚
  • 359 lm
  • 462 lm
  • 451 lm
  • 389 lm
  • 414 lm
 - -
