Product

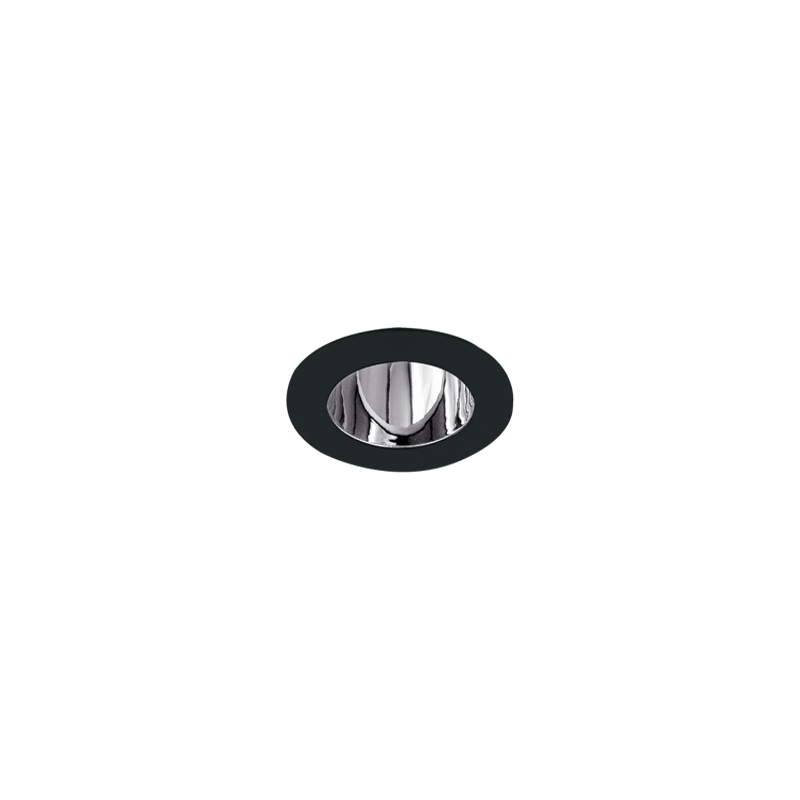

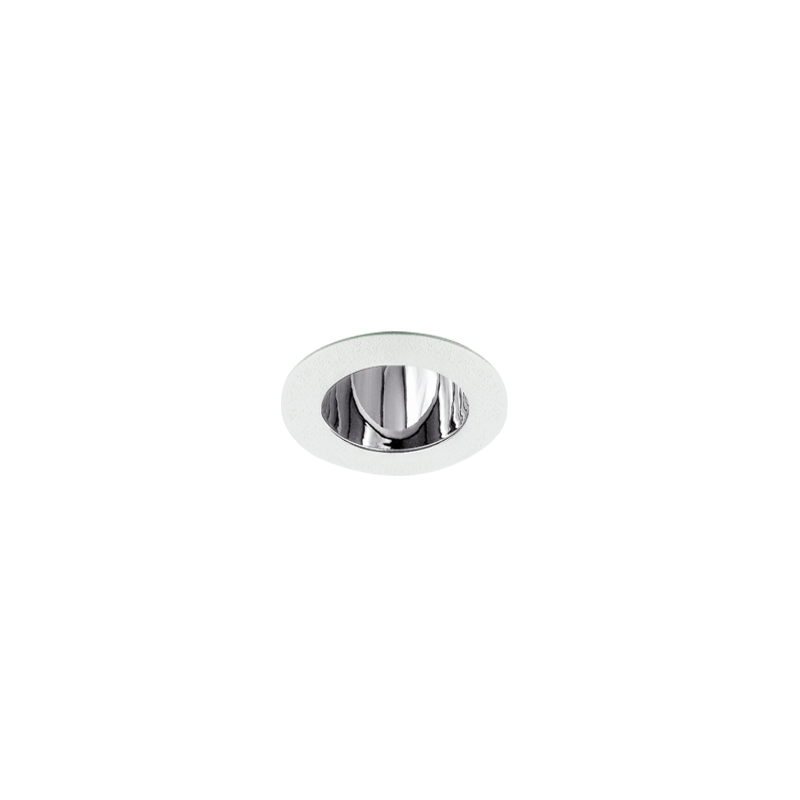

DD-11020.02
클릭하여 확대
DD-11020.02
클릭하여 확대
DD-11020.02
DD-11020.02

DD-11020.02

Recessed Fixed

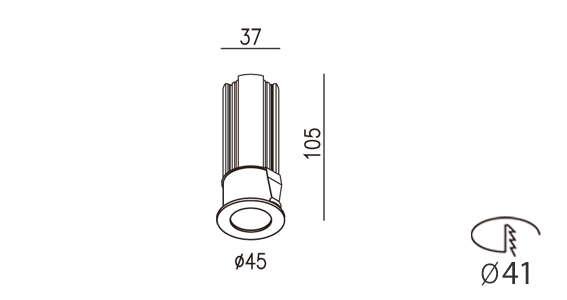

DD-11020.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    ABS
  • Finished
    White, Black, Chrome, Dark Chrome
  • Reflector
    INNER : LENS / OUTER : ABS (Chrome)
  • Dimension
    ∅ 45 x H 105 mm
  • Hole Cut
    ∅ 41 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-11020.02
  • 7 W
  • 5 W
  • 36 Vdc
  • 150 mA
  • 27.0 ˚
  • 315 lm
 - -
  • DD-11020.02
  • 10 W
  • 8 W
  • 36 Vdc
  • 220 mA
  • 27.1 ˚
  • 440 lm
 - -
