Product

RM50-15
클릭하여 확대

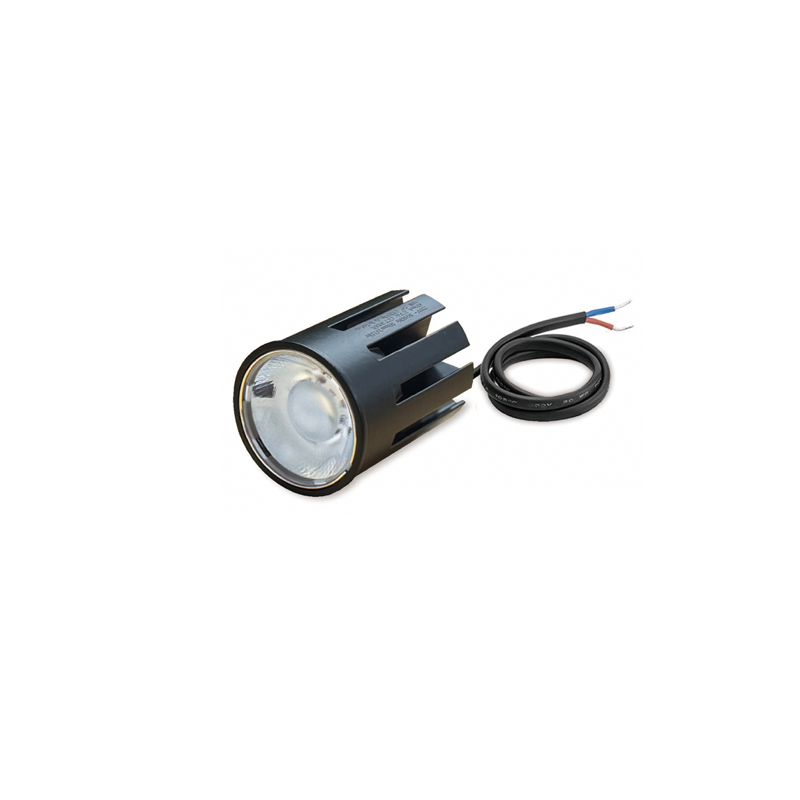

RM50-15

RM50-15

LED Lamp 15W

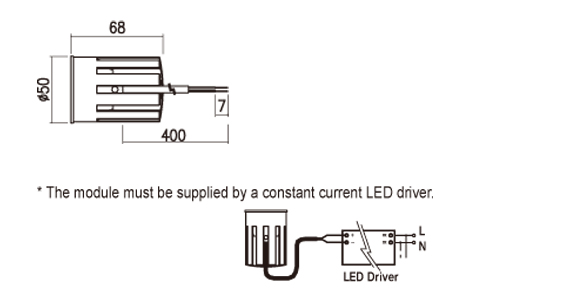

RM50-15 도면

PRODUCT SPECIFICATION

  • Type of LED
    RM50-15 (LED Lamp)
  • Input Voltage
    220-240 Vac , 50/60 Hz
  • CRI
    90
  • Color Temperature
    4 000 K / 3 000 K / 2700K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    Black
  • Dimension
    ∅ 50 x H 68 mm

PRODUCT FEATURES



PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • RM50-15
  • (LED Lamp)
  • 15 W
  • 36 Vdc
  • 32 Vdc
  • 32 Vdc
  • 32 Vdc
  • 350 mA
  • 400 mA
  • 400 mA
  • 400 mA
  • 15 ˚
  • 25 ˚
  • 36 ˚
  • 42 ˚
  • 1 069 lm
  • 1 435 lm
  • 1 432 lm
  • 1 398 lm
 - -
