DDC-65030.24
클릭하여 확대
DDC-65030.24

DDC-65030.24

Track adjustable

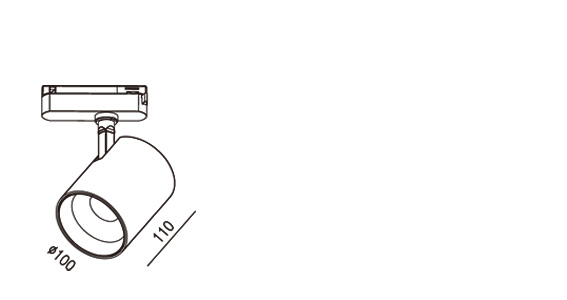

DDC-65030.24 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240 Vac , 50/60 Hz
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC or LENS
  • Dimension
    ∅ 100 x L 110 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65030.24
  • (Reflector Type)
  • 37 W
  • 32 W
  • 36 Vdc
  • 900 mA
  • 14.8 ˚
  • 24.6 ˚
  • 34.1 ˚
  • 47.4 ˚
  • 56.2 ˚
  • 3 623 lm
  • 3 476 lm
  • 3 484 lm
  • 3 487 lm
  • 3 543 lm
 - -
  • DDC-65030.24
  • (LENS Type)
  • 37 W
  • 32 W
  • 36 Vdc
  • 900 mA
  • 17.3 ˚
  • 25.1 ˚
  • 42.3 ˚
  • 3 872 lm
  • 3 935 lm
  • 3 988 lm
 - -
