Product

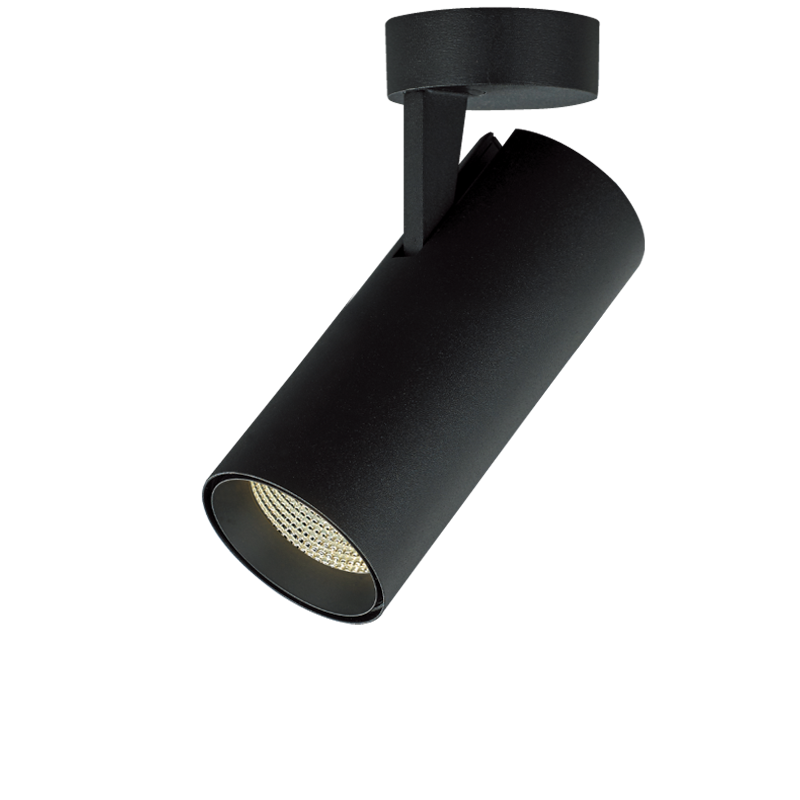

DDC-65341.02
클릭하여 확대
DDC-65341.02

DDC-65341.02

Surfaced Mounted adjustable

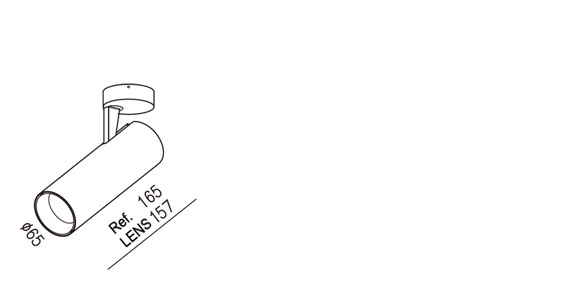

DDC-65341.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC (Vacuum Coating)
  • Dimension
    ∅ 65 x H 165 mm
  • Hole Cut

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65341.02
  • (Reflector type)
  • 20 W
  • 16 W
  • 32 Vdc
  • 500 mA
  • 16.0 ˚
  • 21.1 ˚
  • 29.2 ˚
  • 40.9 ˚
  • 1 642 lm
  • 1 567 lm
  • 1 583 lm
  • 1 683 lm
 - -
  • DDC-65341.02
  • (LENS type)
  • 20 W
  • 16 W
  • 32 Vdc
  • 500 mA
  • 17.8 ˚
  • 20.3 ˚
  • 33.3 ˚
  • 42.8 ˚
  • 1 706 lm
  • 1 817 lm
  • 1 823 lm
  • 1 733 lm
 - - -
