Track adjustable

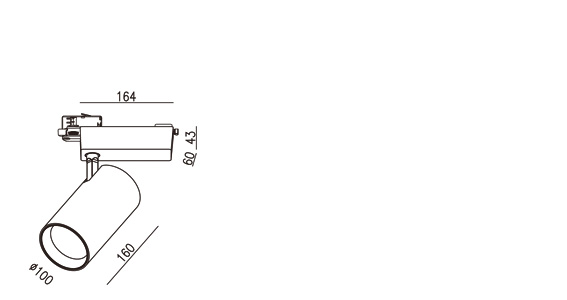

DDC-65181 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Silver or LENS
  • Dimension
    ∅ 100 x H 160 mm
  • Hole Cut

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION

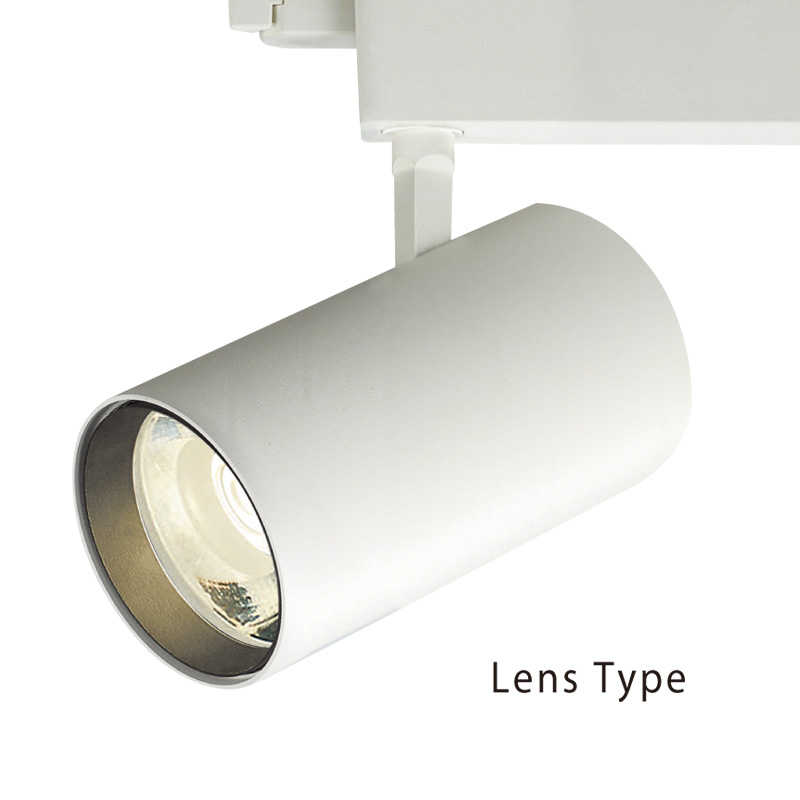

  • DDC-65181
  • (LENS)
  • 49 W
  • 45 W
  • 36 Vdc
  • 1 200 mA
  • 19.7 ˚
  • 28.4 ˚
  • 46.7 ˚
  • 4 436 lm
  • 4 539 lm
  • 4 527 lm
 - -

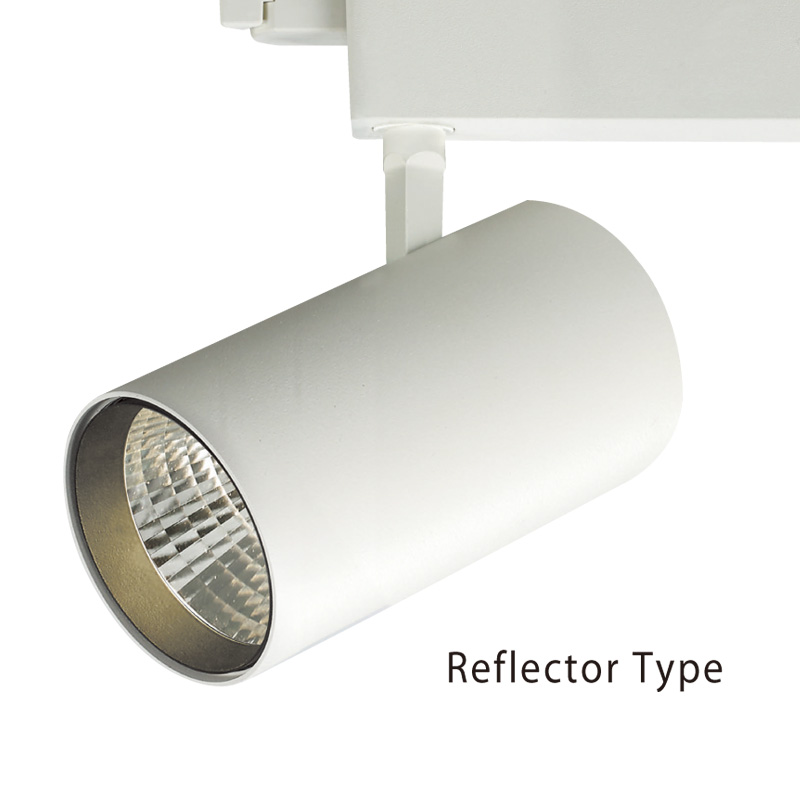

  • DDC-65181
  • (Reflector)
  • 49 W
  • 45 W
  • 36 Vdc
  • 1 200 mA
  • 15.5 ˚
  • 25.1 ˚
  • 34.2 ˚
  • 45.5 ˚
  • 54.5 ˚
  • 4 162 lm
  • 4 005 lm
  • 3 936 lm
  • 4 147 lm
  • 4 066 lm
 - -
  • DDC-65182
  • (only Reflector)
  • 57 W
  • 53 W
  • 36 Vdc
  • 1 400 mA
  • 15.0 ˚
  • 25.2 ˚
  • 34.4 ˚
  • 45.4 ˚
  • 54.6 ˚
  • 4 747 lm
  • 4 584 lm
  • 4 513 lm
  • 4 615 lm
  • 4 552 lm
 - -
