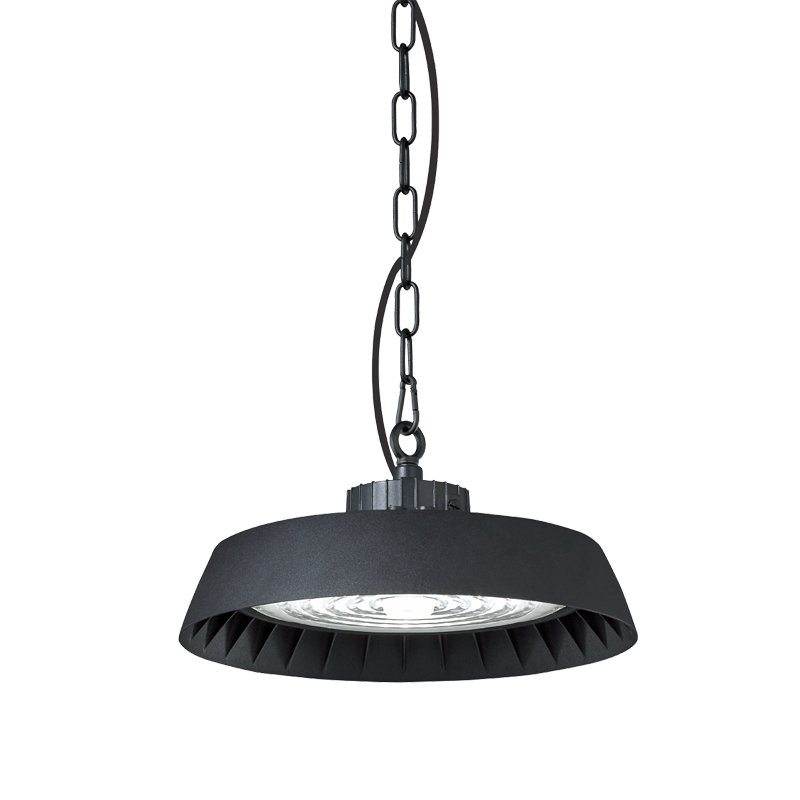

Pendant Fixed

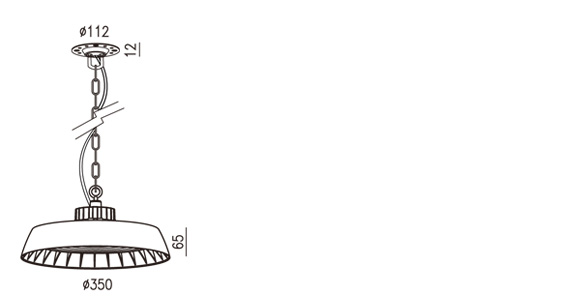

DP-51360.06 도면

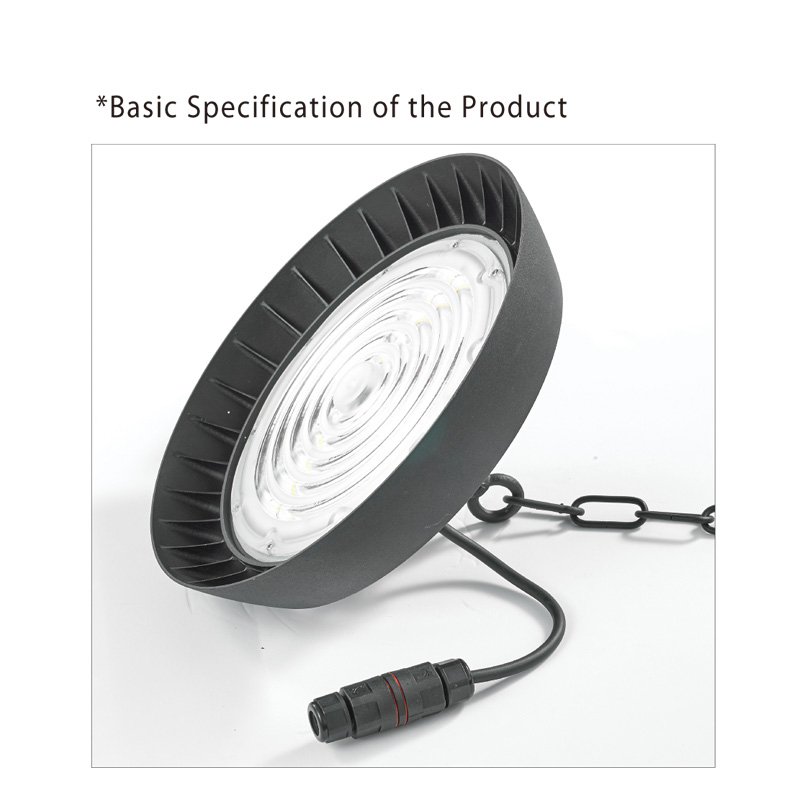

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    5 700K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    ∅ 350 x H 65 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DP-51360.06
  • 120 W
  • 113 W
  • 216 Vdc
  • 520 mA
  • 114.9 ˚
  • 93.7 ˚
  • 14 833 lm
  • 15 025 lm
 - -
  • DP-51361.06
  • 150 W
  • 141 W
  • 219 Vdc
  • 650 mA
  • 114.9 ˚
  • 93.6 ˚
  • 17 808 lm
  • 17 849 lm
 - -
