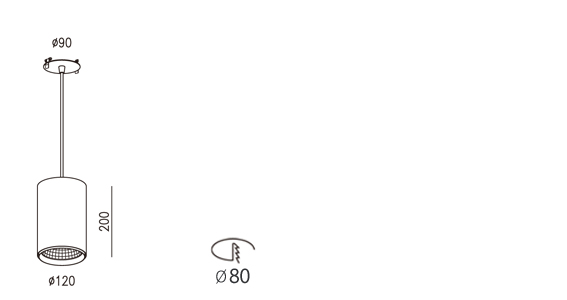

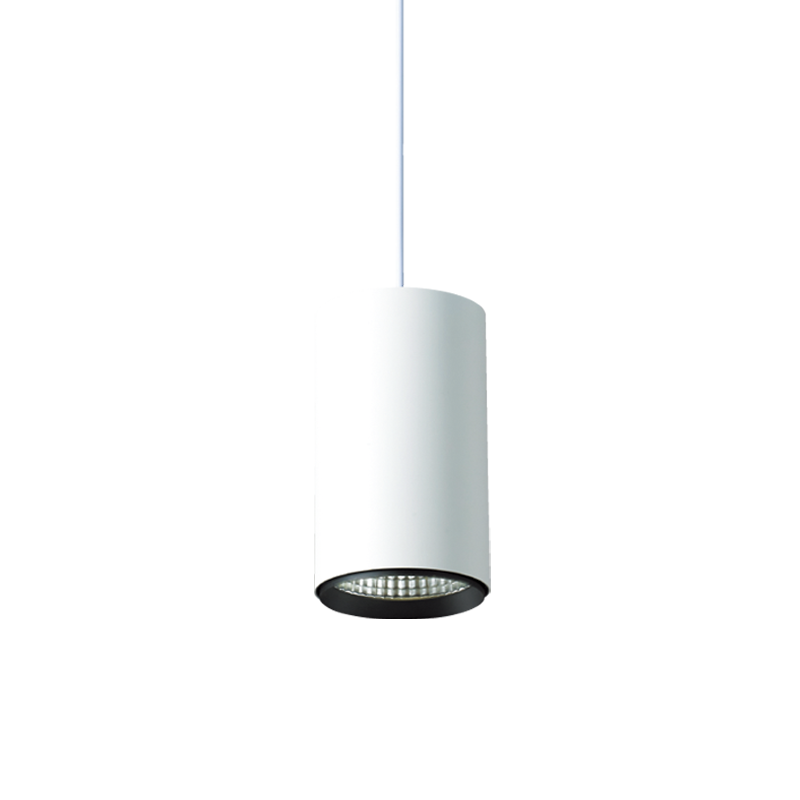

DP-51200.04

Pendant Fixed

PRODUCT SPECIFICATION

Type of LED
COB or SMD
Input Voltage
220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
CRI
80, 90
Color Temperature
COB ( 4 000 K / 3 000 K ) / SMD ( 5 000 K / 4 000 K / 3 000 K )
SDCM
3
Life time
50 000 hours at 25 ℃

PRODUCT DATA DOWNLOAD
ORDER NUMBER	INPUT POWER	OUTPUT POWER	OUTPUT VOLTAGE	OUTPUT CURRENT	BEAM ANGLE	LUMINOUS FLUX	CATALOGUE	INSTALLATION
DP-51200.04 ( COB )	27 W	24 W	34 Vdc	700 mA	11.1 ˚ 23.6 ˚ 38.6 ˚	2 699 lm 2 665 lm 2 668 lm	-	-
DP-51201.04 ( COB )	35 W	32 W	35 Vdc	900 mA	11.0 ˚ 23.3 ˚ 40.8 ˚	3456 lm 3444 lm 3436 lm	-	-
DP-51206.04 ( SMD )	27 W	24 W	34 Vdc	900 mA	44.6 ˚	2 549 lm	-	-
DP-51207.04 ( SMD )	35 W	32 W	35 Vdc	900 mA	44.5 ˚	2911 lm	-	-
