Product

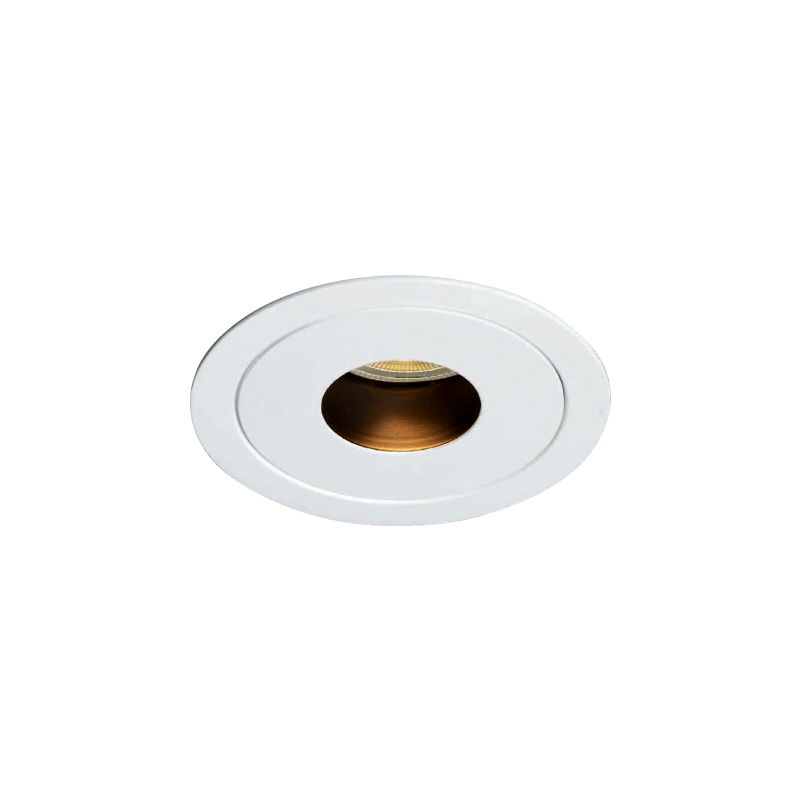

DD-10312
클릭하여 확대
DD-10312

DD-10312

Recessed Fixed

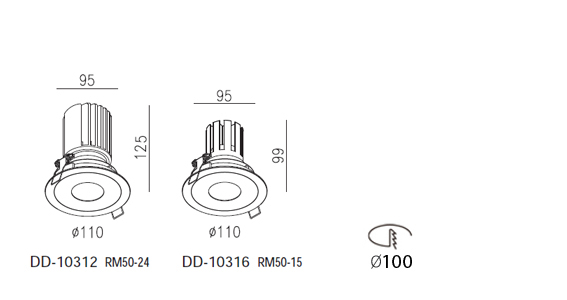

DD-10312 도면

PRODUCT SPECIFICATION

  • Type of LED

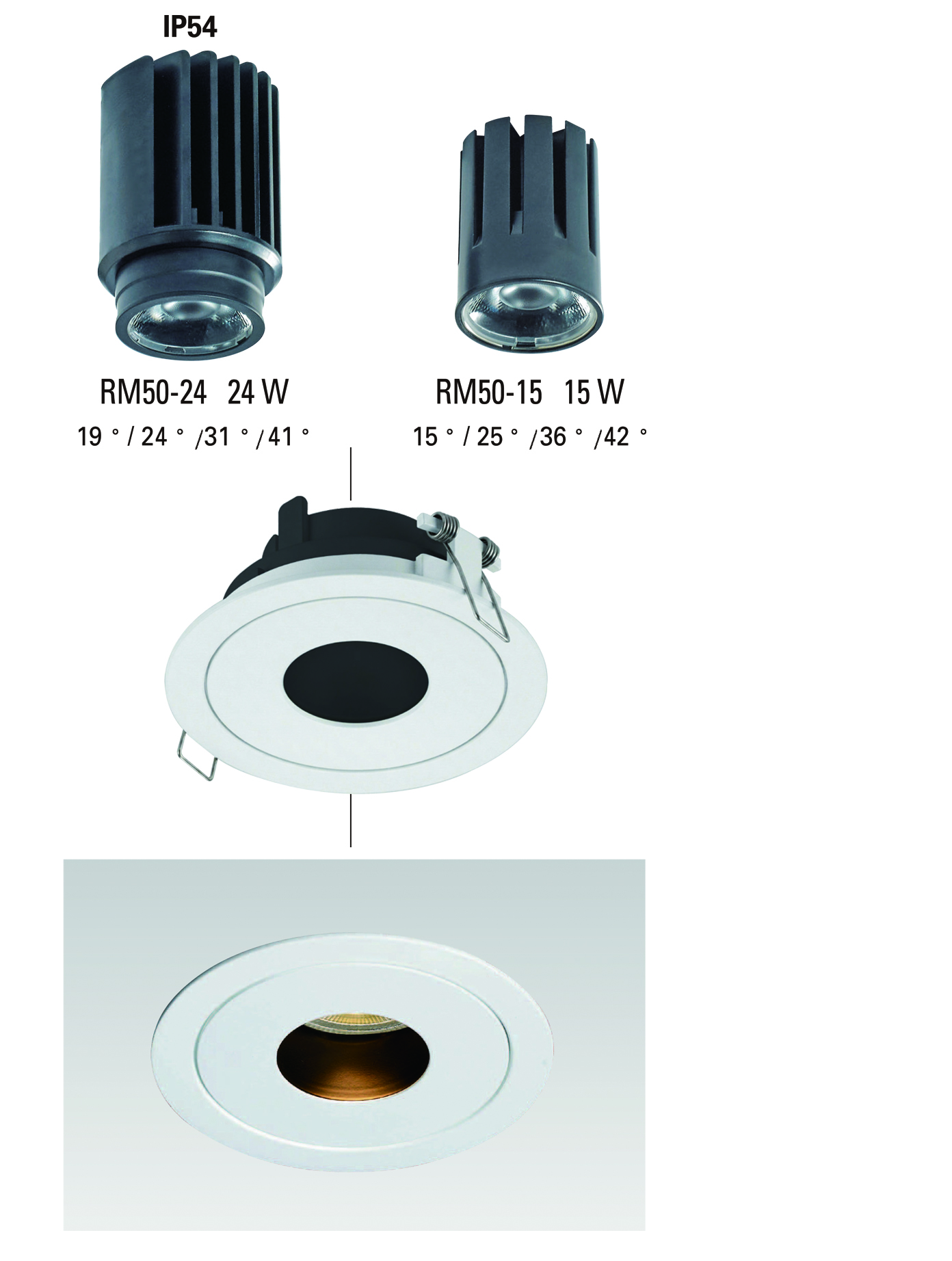

    RM50-24, RM50-15 (LED Lamp)
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K / 2700K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Dimension
    ∅ 110 mm x H (RM50-24) 125 mm / (RM50-15) 100 mm
  • Hole Cut
    ∅ 100 mm

PRODUCT FEATURES

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-10312
  • (RM50-24)
  • 24 W
  • 36 Vdc
  • 550 mA
 - - -
  • DD-10316
  • (RM50-15)
  • 15 W
  • 32~36 Vdc
  • 350~400 mA
 - - -
