Product

DD-26540.05
클릭하여 확대

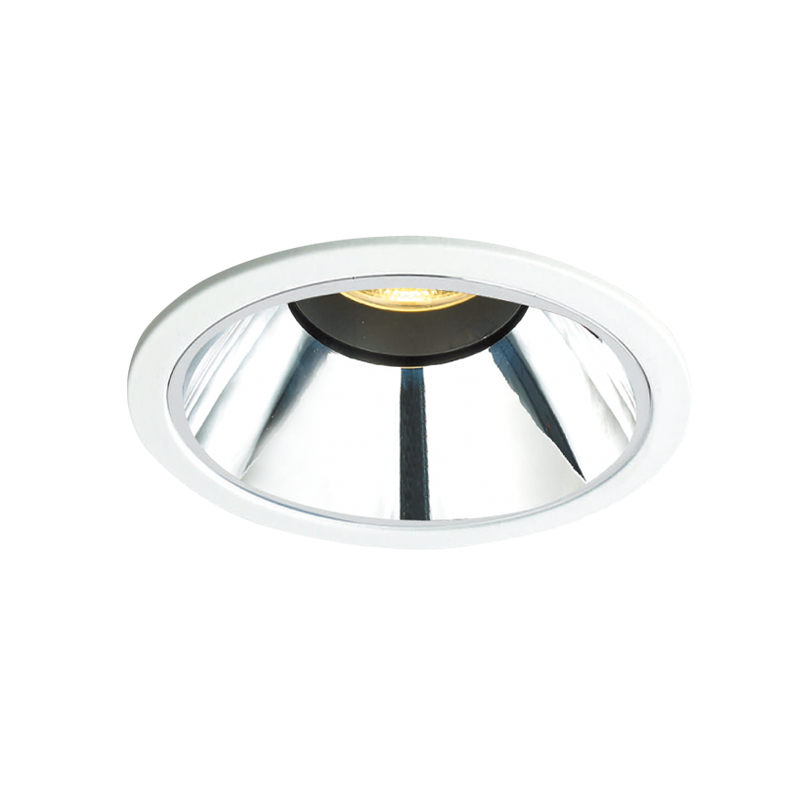

DD-26540.05

DD-26540.05

Recessed adjustable

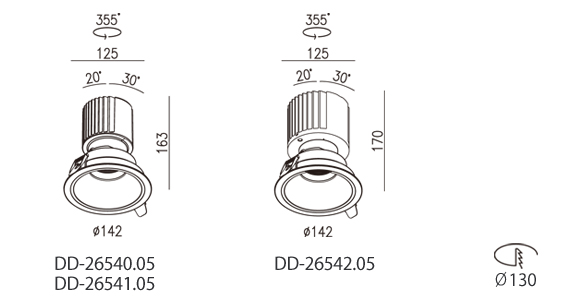

DD-26540.05 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : LENS / OUTER : ABS (Chrome)
  • Dimension
    ∅ 142 x H 170 mm
  • Hole Cut
    ∅ 130 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26540.05
  • 38 W
  • 32 W
  • 36 Vdc
  • 900 mA
  • 19.8 ˚
  • 28.4 ˚
  • 37.0 ˚
  • 50.1 ˚
  • 2 917 lm
  • 4 332 lm
  • 4 520 lm
  • 4 128 lm
 - -
  • DD-26541.05
  • 44 W
  • 38 W
  • 36 Vdc
  • 1 050 mA
  • 19.8 ˚
  • 28.4 ˚
  • 37.0 ˚
  • 50.0 ˚
  • 3 303 lm
  • 4 885 lm
  • 4 979 lm
  • 4 684 lm
 - -
  • DD-26542.05
  • 48 W
  • 44 W
  • 36 Vdc
  • 1 200 mA
  • 25.6 ˚
  • 28.6 ˚
  • 38.1 ˚
  • 50.4 ˚
  • 5 009 lm
  • 5 320 lm
  • 5 507 lm
  • 4 955 lm
 - -
